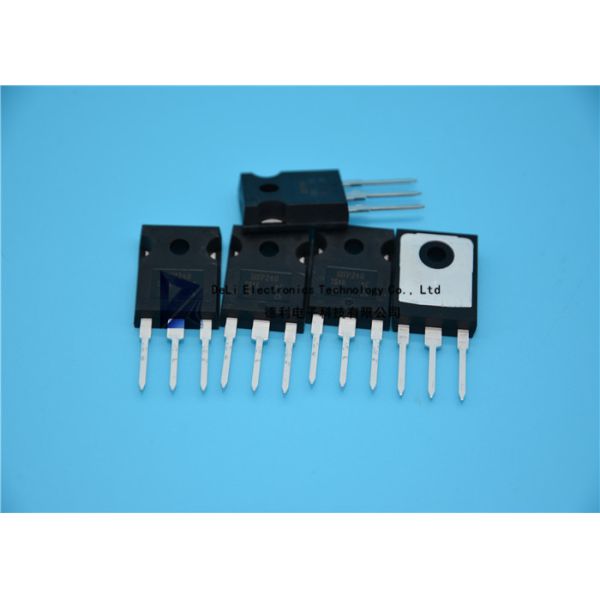

IRFP240N Channel General Purpose Schottky Diode Silicon Rectifier Diode

Name: IRFP240N Channel General Purpose Schottky Diode Silicon Rectifier Diode
Brand: Vishay
Price: 1 USD

China IRFP240N Channel General Purpose Schottky Diode Silicon Rectifier Diode wholesale

Brand Name : Vishay

Model Number : IRFP240

Place of Origin : CHINA

MOQ : 10 PCS

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 10000PCS

Delivery Time : STOCK

Packaging Details : TUBE

Categories : Transistors - FETs, MOSFETs - Single

Drain to Source Voltage (Vdss) : 200V

Current - Continuous Drain (Id) @ 25°C : 20A (Tc)

Drive Voltage (Max Rds On, Min Rds On) : 10V

Rds On (Max) @ Id, Vgs : 180 mOhm @ 12A, 10V

Input Capacitance (Ciss) (Max) @ Vds : 1300pF @ 25V

Gate Charge (Qg) (Max) @ Vgs : 70nC @ 10V

Power Dissipation (Max) : 150W (Tc)

Contact Now

IRFP240 General Purpose Rectifier Diode N-Channel 200V 20A (Tc) 150W (Tc) Through Hole

FEATURES

• Dynamic dV/dt Rating

• Repetitive Avalanche Rated

• Isolated Central Mounting Hole

• Fast Switching • Ease of Paralleling

• Simple Drive Requirements

• Compliant to RoHS Directive 2002/95/EC

DESCRIPTION

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Product Attributes	Select All
Categories	Discrete Semiconductor Products
	Transistors - FETs, MOSFETs - Single
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	70nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1300pF @ 25V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3

IRFP240N Channel General Purpose Schottky Diode Silicon Rectifier Diode

Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales3@deli-ic.com
Skype:hkdeli881
TEL:86-0755-82539981

Product Tags:

high current schottky diode

surface mount schottky diode
